4.25. NUMA-Aware Per-CPU Framework

4.25.1. Introduction

Modern system designs increasingly adopt multi-node architectures, where the system is divided into multiple topological units such as chiplets, sockets, or other isolated compute and memory units. Each node typically has its own local memory, and CPUs within a node can access this memory with lower latency than CPUs on remote nodes. In TF-A’s current implementation, per-CPU data (for example, PSCI or SPM context) is stored in a global array or contiguous region, usually located in the memory of a single node. This approach introduces two key issues in multi-node systems:

  • Storage Constraints: As systems scale to include more CPUs and nodes, this centralized allocation becomes a bottleneck. The memory capacity of a single node may be insufficient to hold per-CPU data for all CPUs. This constraint limits scalability in systems where each node has limited local memory.

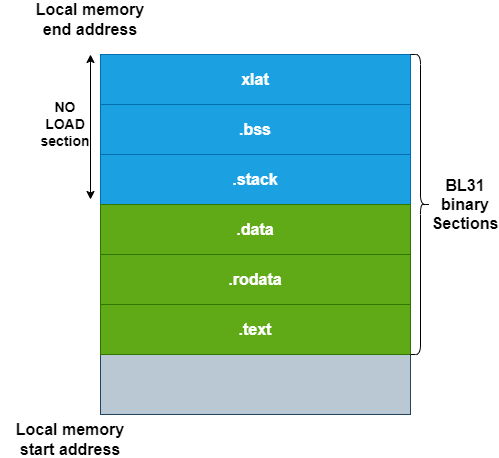

    Diagram showing the BL31 binary section layout in TF-A within local memory. From bottom to top: \`.text\`, \`.rodata\`, \`.data\`, \`.stack\`, \`.bss\`, and \`xlat\` sections. The \`.text\`, \`.rodata\`, and \`.data\` segments are \`PROGBITS\` sections, while \`.stack\`, \`.bss\`, and \`xlat\` form the \`NOBITS\` sections at the top. The memory extends from the local memory start address at the bottom to the end address at the top.

    Figure: Typical BL31/BL32 binary storage in local memory

  • Non-Uniform Memory Access (NUMA) Latency: In multi-node systems, memory access across nodes incurs additional latency because of interconnect traversal. When per-CPU data is centralized on a single node, CPUs on remote nodes must access that data via the interconnect, leading to increased latency for frequent operations such as context switching, exception handling, and crash reporting. This violates NUMA design principles, where data locality is critical to achieving performance and scalability.

To address these challenges, TF-A provides the NUMA-Aware Per-CPU Framework. The framework optimizes the allocation and access of per-CPU objects by letting platforms place them in the nodes with the lowest access latency.

4.25.2. Design

The framework provides standardized interfaces and mechanisms for allocating, defining, and accessing per-CPU data in a NUMA-aware environment. This ensures portability and maintainability across different platforms while optimizing for performance in multi-node systems.

4.25.2.1. .per_cpu Section

The framework dedicates a zero-initialized, cache-aligned .per_cpu section to allocate per-CPU global variables and ensure that these objects reside in the local memory of each NUMA node. The figure below illustrates how per-CPU objects are allocated in the local memory of their respective nodes.

Diagram comparing the TF-A BL31 memory layout with NUMA disabled versus NUMA enabled. When NUMA is disabled, Node 0 contains a local memory layout with the \`.text\`, \`.rodata\`, \`.data\`, \`.stack\`, \`.bss\`, and \`xlat\` sections stacked vertically. When NUMA is enabled, Node 0 includes an additional \`.per_cpu\` section between \`.bss\` and \`xlat\` to represent per-CPU data allocation, while remote nodes (Node 1 through Node N) each contain their own local per-CPU memory regions.

Figure: BL31/BL32 binary storage in local memory of per node when per-cpu NUMA framework is enabled

At link time, TF-A linker scripts carve out this section and publish section bounds and per-object stride via internal symbols so that they can be replicated and initialized across the non-primary nodes.

This linker section also addresses a common performance issue in modern multi-CPU systems known as false sharing. This issue arises when multiple CPUs access different addresses that lie on the same cache line. Although the accessed variables may be logically independent, their proximity in memory can result in repeated cache invalidations and reloads. Cache-coherency mechanisms operate at the granularity of cache lines (typically 64 bytes). If two CPUs write to different addresses within the same cache line, the line bounces between cores and incurs unnecessary overhead.

Diagram showing three CPUs (CPU 1, CPU 2, and CPU 3) each with their own cache, connected through a shared interconnect to main memory. At address 0x1000, CPU 2's cache holds data values D1, D2, D3, and D4 representing per-CPU data objects, while CPU 1 and CPU 3 have that cache line marked as invalid. CPU 3 is attempting to read from its own per-CPU data object, triggering a coherence transaction over the interconnect.

Figure: Two processors modifying different variables placed too closely in memory, leading to false sharing

To eliminate false sharing, this framework employs linker-script-based alignment, which:

  • Places all per-CPU variables into a dedicated, aligned section (.per_cpu).

  • Aligns that section using the cache granularity size (CACHE_WRITEBACK_GRANULE).

4.25.2.2. Definer Interfaces

The NUMA-Aware Per-CPU Framework provides a set of macros to define and declare per-CPU objects efficiently in multi-node systems.

  • PER_CPU_DECLARE(TYPE, NAME)

    Declares an external per-CPU object so that other translation units can refer to it without allocating storage.

  • PER_CPU_DEFINE(TYPE, NAME)

    Defines a per-CPU object and assigns it to PER_CPU_SECTION_NAME so the linker emits it into the .per_cpu section that the framework manages.

4.25.2.3. Accessor Interfaces

The NUMA-Aware Per-CPU Framework also provides macros to access per-CPU objects efficiently in multi-node systems.

  • PER_CPU_BY_INDEX(NAME, CPU)

    Returns a pointer to the per-CPU object NAME for the specified CPU by combining the per-node base with the object’s offset within .per_cpu.

  • PER_CPU_CUR(NAME)

    Returns a pointer to the per-CPU object NAME for the current CPU.

For use in assembly routines, a corresponding macro version is provided:

In assembly routines, the per_cpu_cur helper macro performs the same calculation. It accepts the label of the per-CPU object and optional register arguments (destination and clobber) to materialize the per-CPU pointer without duplicating addressing logic in assembly files.

4.25.3. Platform Responsibilities (NUMA-only)

When NUMA is enabled, the platform is required to comply with some additional requirements in order for the runtime to correctly set up per-CPU sections on remote nodes:

4.25.3.1. 1. Enable the Framework

Set PLATFORM_NODE_COUNT to a value greater than 1 (>=2) in the platform makefile to enable NUMA-aware per-CPU support:

PLATFORM_NODE_COUNT := 2  # >= 2 enables NUMA-aware per-CPU support

Platforms that are not multi-node do not need to modify this value because the default PLATFORM_NODE_COUNT is 1. The NUMA framework is not supported in 32-bit images such as BL32 SP_MIN.

4.25.3.2. 2. Provide Per-CPU Section Base Address Data

Ensure that the platform can supply the base address of the .per_cpu section for each node and CPU when implementing plat_per_cpu_node_base and plat_per_cpu_base. The framework does not mandate how this information is obtained, only that each hook returns a valid base address. Platforms may:

  • derive the base addresses from platform descriptors or firmware configuration data;

  • read them from device tree nodes or other runtime discovery mechanisms; or

  • encode them in platform-specific tables compiled into the image.

If a node described in platform data is not populated at runtime, the hooks may return UINT64_MAX to signal that no per-CPU section exists for that node.

The platform is free to maintain this mapping however it prefers, and may do so at either compile-time or through employing runtime discovery. The only requirement is that the plat_per_cpu_node_base and plat_per_cpu_base hooks translate a node or CPU identifier into the base address of the corresponding .per_cpu section.

Platform-defined regions that hold remote per-CPU sections must have page-aligned bases and sizes for page table mapping through the xlat library, which requires page alignment for mapped entries. The per-CPU section itself requires only cache writeback granule alignment for its base.

4.25.3.3. 3. Implement Required Platform Hooks

Provide the following platform-specific functions:

  • uintptr_t plat_per_cpu_base(uint64_t cpu)

    Returns the base address of the .per_cpu section for the specified CPU.

  • uintptr_t plat_per_cpu_node_base(uint64_t node)

    Returns the base address of the .per_cpu section for the specified node.

  • uintptr_t plat_per_cpu_dcache_clean(void)

    Cleans the entire per-CPU section from the data cache. This ensures that any modifications made to per-CPU data are written back to memory, making them visible to other CPUs or system components that may access this memory. This step is especially important on platforms that do not support hardware-managed coherency early in the boot process.

4.25.4. References
